Homicide Reports
Introduction
Our model addresses both Regression and Classification techniques. The regression techniques focus to look for relationship between crime states and crime rate of the following years. The classification technique focuses on predicting the crime rates to determine the top 10 states for a given year.
The work done by us can be used for predicting states with high crime rate which can help to determine where resources and program should be focused. The information from the model can be used by people before purchasing houses or making construction decisions. The model can also be used for businesses on prediction to inform security budgets.
Data and Data Cleaning
The original dataset was based on homicide reports from 1980-2014 from Kaggle. ( Link to Kaggle Dataset ) This dataset had 24 total columns listed below and each row detailed a homicide including information such as victim and perpetrator descriptions (i.e. age, race, ethnicity) and details about the murder itself (solved status, weapon type, location). While the Kaggle forum proposed interesting questions about predicting serial killers, our team wanted to take a more broad look at the state murder rates, so a lot of cleaning and synthesizing of the data needed to be done.
| Categorical Columns | Numeric Columns |
|---|---|
| Agency Code* | Incident* |
| Agency Name* | Victim Age |
| Agency Type | Perpetrator Age |
| City | Victim Count |
| State | Perpetrator Count |
| Year | |
| Month | |
| Crime Type | |
| Crime Solved | |
| Victim Sex | |
| Victim Race | |
| Victim Ethinicity | |
| Perpetrator Sex | |
| Perpetrator Race | |
| Perpetrator Ethincity | |
| Relationship | |
| Weapon | |
| Record Source |
The dataset was reorganized such that each row was a yearly summary for a singular state. The columns from the original dataset, excluding those with an asterisk , were cleaned to create summary statistics for a given state each year. A total crime count and total city with crime count were the first two values calculated. For any categorical columns, a rate and count were calculated for each of the possible values of the column. Rates were calculated by dividing the count for a given value by the total crime count for that row. Relationships were ultimately grouped into more general relationship types to help reduce the total number of columns. Those groupings can be seen in the table below. For any numeric columns, the minimum, maximum, and average value was calculated. While this dataset was quite clean, any numeric values that were unknown were set to 0, thus skewing any of the numeric values.
| New Relationship Type | Original Relationship Types |
|---|---|
| Friend | Acquaintance, Friend, Neighbor, Employer, Employee |
| Stranger | Unknown, Stranger |
| Spouse | Wife, Ex-Husband, Husband, Ex-Wife, Common-Law Husband, Common-Law Wife |
| Dating | Girlfriend, Boyfriend, Boyfriend/Girlfriend |
| Sibling | Brother, Sister |
| Child | Stepdaughter, Son, Daughter, Stepson |
| Parent | Father, Mother, Stepfather, Stepmother |
| Other Family | Family, In-Law |
After calculating all of the summary statistics based on the original dataset, we still needed to calculate crime rate and whether a state was in the top ten states for that year. A second dataset was uploaded, the Historical State Populations (1900-2017) dataset from Kaggle. ( Link to Formula Source ) Using this dataset we were able to calculate each states homicide crime rate using the formula:
Once these crime rates were calculated, the top ten states with the highest homicide crime rate were calculated for each year and noted in the appropriate columns. Since we want to use one year’s date to predict the next year’s crime rate and top ten status, two new columns were added to detail this information. Lastly, after all other data cleaning was done, the state column was one-hot encoded to create 51 new columns (as we were including the District of Columbia) and years were normalized to start at 1.
In total, our new dataset had data for the years 1980 to 2013, with 2014 ultimately being ignored due to lack of homicide crime rates for 2015. In total, the data frame had 159 summary statistic columns, 210 including the additional state one-hot encoding columns and 2 prediction columns. This final dataset was split into a testing dataset, which would also be used for validation sets, and a testing set. The training set included data from years 1980 - 2008 (~85%) and the testing set included data from years 2009 – 2013 (~15%).
Regression Predictions
Linear Regression
The problem statement was implemented using three regression methods with Linear Regression being the first. Initially,the dataset was trained and tested using Multiple Linear Regression method and then Regularization techniques were incorporated to improve the model performance and prevent overfitting on test data. MLP led to poor test R2_score as well weak RMSE score. Using Ridge and Lasso regularization techniques showed significant improvements in the test set results, allowing the model to perform well on an unseen data.The alpha parameter of the Regularization methods were tuned till an extent where the model stopped showing any convergence. Based on the results, Lasso Regularization method showed much better results and minimized the RMSE to a great extent.
| Algorithm | R2_score | Mean Absolute Error | Mean Squared Error | Root Mean Squared Error |
|---|---|---|---|---|
| Linear Regression | 0.346 | 1.380 | 5.03 | 2.243 |
| Ridge Regression (alpha=0.01) | 0.352 | 1.37 | 4.98 | 2.23 |
| Lasso Regression (alpha=0.01) | 0.478 | 1.02 | 4.01 | 2.00 |
| Ridge Regression (alpha=0.5) | 0.397 | 1.27 | 4.63 | 2.15 |
| Lasso Regression (alpha=0.5) | 0.614 | 0.81 | 2.96 | 1.72 |
| Ridge Regression (alpha=1.0) | 0.419 | 1.22 | 4.47 | 2.11 |
| Lasso Regression (alpha=1.0) | 0.638 | 0.77 | 2.78 | 1.66 |
Time Series

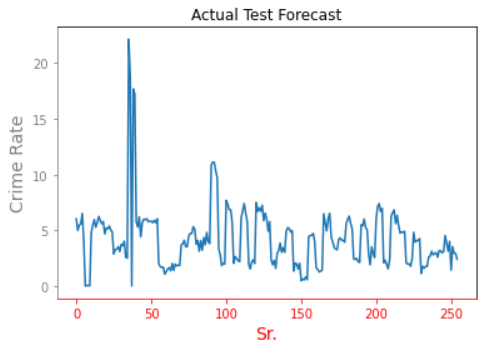

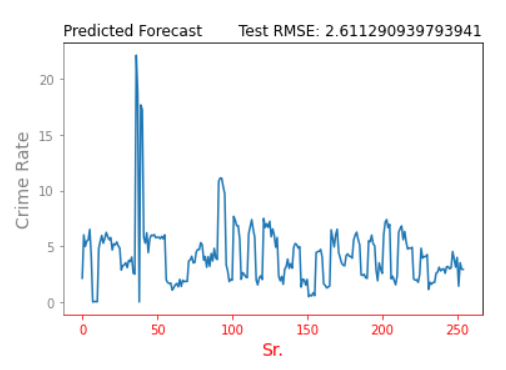

For the Time Series method, a new Dataframe was extracted out of the original dataset consisting of the “year” column and the “No_of_Crime_Rate” column. The ‘year’ column was converted to datetime format and set as the index column of the new dataframe. The implementation was carried out using two Time-Series methods beginning with AutoRegressive model, where the lag hyperparameter was tuned and set to 25 in order to reduce the RMSE. The below predictions from ARIMA Model (AutoRegressive Integrated Moving Average) were relatively better and accurate resulting in a lower error rate.
Neural Networks
Next, The neural networks section were applied. At first, a Sequential layer consisting of a single hidden layer of 20 neurons was trained on the dataset using ‘adam’ as the optimizer algorithm and ‘reLu activation function leading to a modest RMSE. The hidden layers and no of neurons were constantly manipulated to reduce the error rate and reach an optimal model performance. From the results, keeping hidden layers to five with twenty neurons in each layer led to a much less error rate on the testing set.
| Hidden layers | Epochs | Mean Absolute Error | Mean Squared Error | Root Mean Squared Error |
|---|---|---|---|---|
| 1 (20 units) | 250 | 1.702 | 6.147 | 2.479 |
| 1 (20 units) | 500 | 1.420 | 5.682 | 2.389 |
| 2 (10 units) | 500 | 1.511 | 5.477 | 2.116 |
| 3 (20 units) | 500 | 1.263 | 5.538 | 2.353 |
| 5 (20 units) | 500 | 1.352 | 4.194 | 2.047 |
Classification Predictions
Logistic Regression

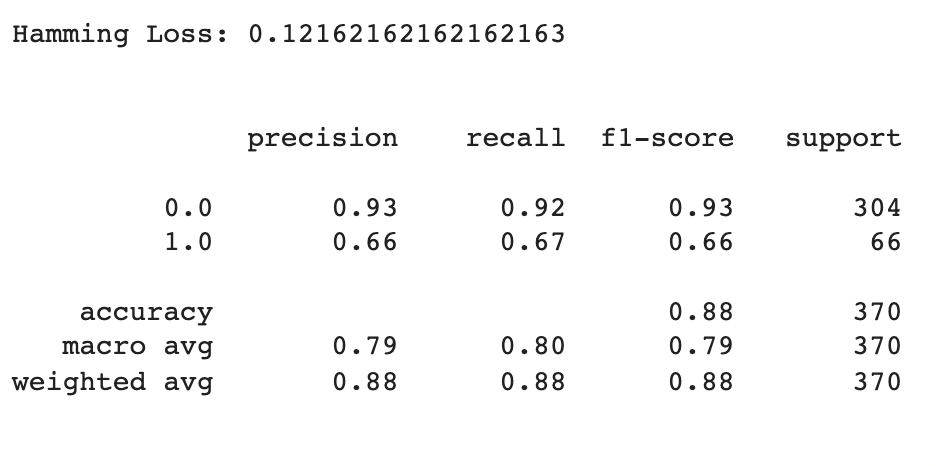

We used the Logistic Regression classifier from sklearn for our model. Initially, we performed validation testing on the training data and evaluated performance of the model based on the following evaluation metrics (refer to the image). We used the built-in train_test_split function to perform the validation testing on our training data. In addition to the usual evaluation metrics that come with the classification report in sklearn, we also used Hamming loss as one of the evaluation metrics. Hamming loss is the fraction incorrectly classified labels upon the total number of labels. As it is evident from the classification repost below, the model performed moderately well on the training data. We got Hamming Loss value equal to 0.12 which indicates quite good performance considering the upper bound for Hamming Loss which is 1 and the lower bound which is zero. After referring to the classification reports for all the classification models that we used, we decided to go with Accuracy and Hamming Loss as the primary metrics for model performance evaluation.

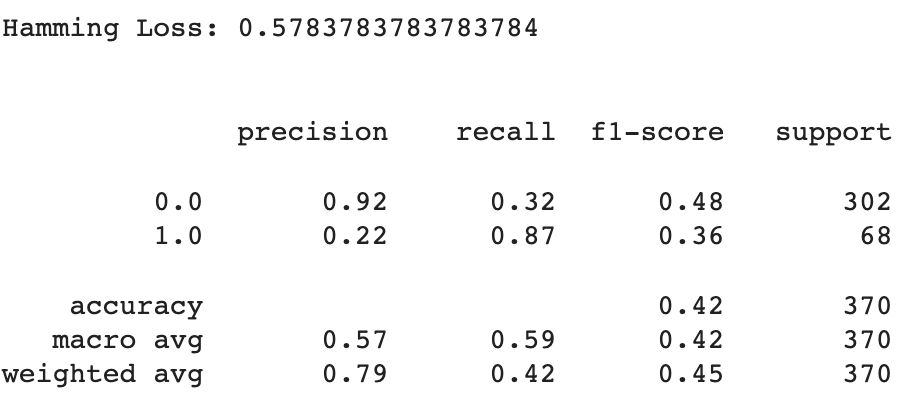

Further, we tested the model trained on the training data on the testing data. However, the model did not perform well. We got the hamming loss value equal to 0.57 which more than half of the total bound of Hamming Loss. Also, the accuracy for this model dropped to 42% from 88% (validation accuracy).

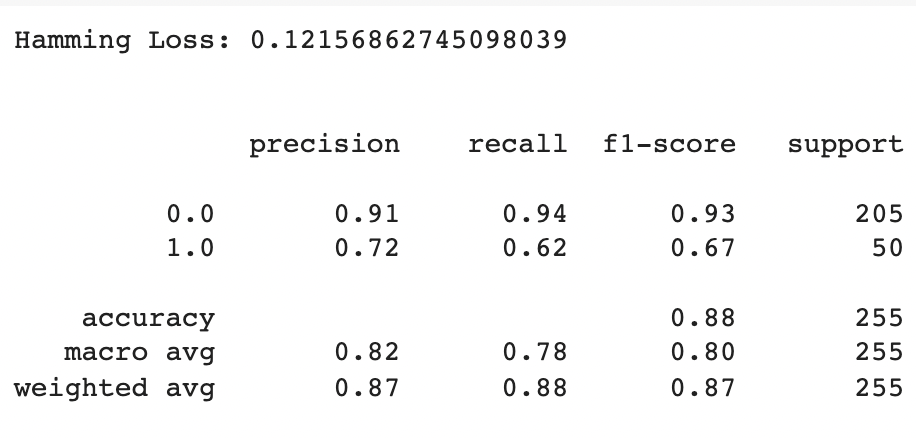

The potential reason behind the poor performance of the model on the testing data was the prediction column ‘Years’. This is because our dataset was spread across a wide range of years. After scaling the years column, we got better results for the Logistic Regression model on our testing data. We got the hamming Loss value equal to 0.12 that was same as the validation testing and accuracy equal to 88% which was again equal to the validation accuracy.
K-Nearest Neighbors

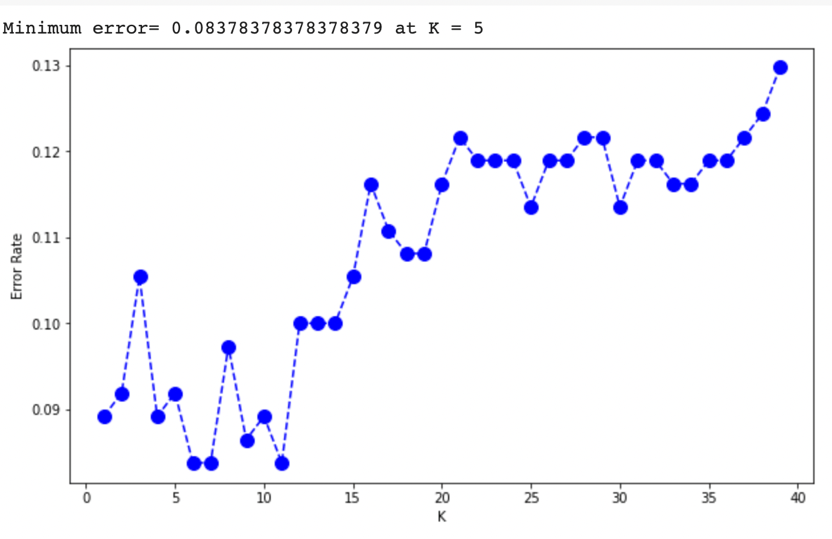

For KNN we used the training data to calculate the optimal value of K. We started with scaling the training data using the Standard scalar. This is essential for KNN as it uses Euclidean Distance to calculate distance between two points. Nearest Neighbors calculation can go wrong if the data is spread over a long range. Thus, it was necessary to scale our training data. We computed the optimal value of K by comparing the error rates. We computed error rate as the difference between y_predicted and y_actual. After calculating value of K over a range of 40 positive integers, we got K equal to 5 which had the least error rate of all values.

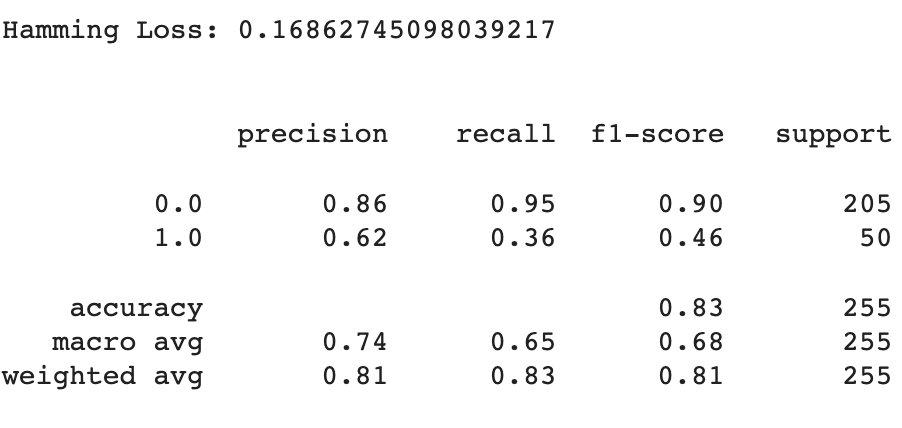

Further, we the optimal value of K obtained from the training dataset, for our testing data. We got a Hamming Loss value equal to 0.16 and Accuracy equal to 83%. The performance of the model was moderate in comparison with the previous model. While we got these results the Years column was scaled like Logistic Regression.
Support Vector Machines

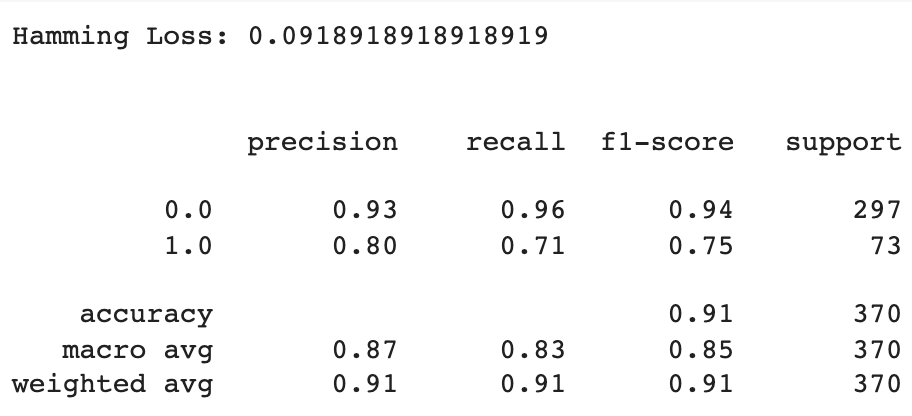

Similar to Logistic Regression, we performed validation testing on the training data using the train_test_split function from sklearn. Like KNN, SVM is also a fitting algorithm that needs scaling. We used Standard Scalar for SVM. I will subtract the mean from each feature and then scale to unit variance. We used the SVC classifier to fit the model. On the training data, we got Hamming Loss equal to 0.09 which was the best so far and a validation accuracy equal to 91% which was again the best so far.

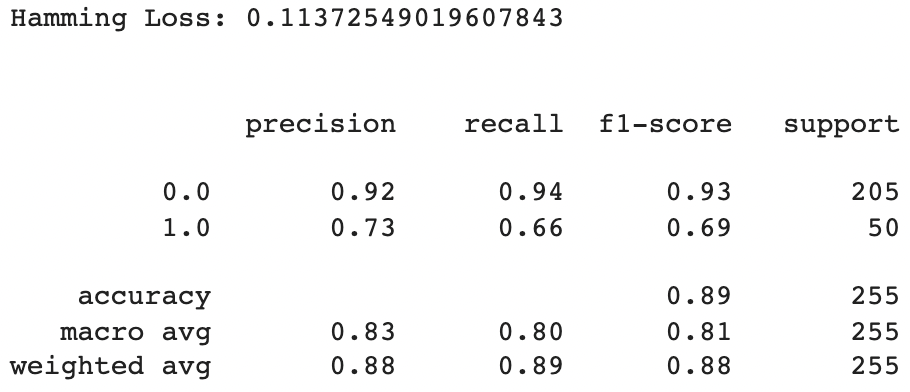

Lessons learnt from the Logistic Regression model, we performed test after scaling the years column. On the testing data SVM performed quite well and we got a Hamming Loss equal to 0.11 and testing accuracy equal to 89%. The performance of SVM was better in comparison with KNN and Logistic Regression models.
Softmax Regression

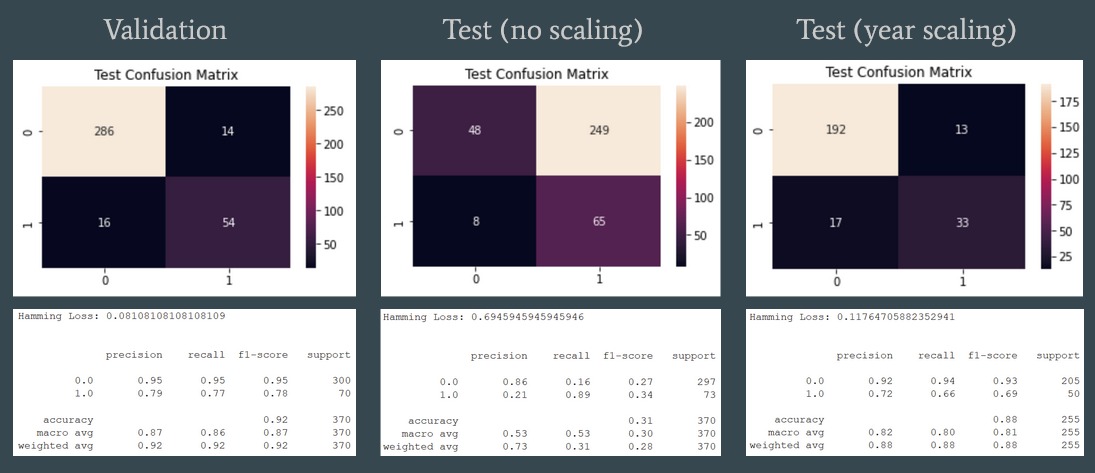

After Logistic Regression, we used Softmax Regression to classify the data as well. Implementing Softmax is pretty simple, you just need to set the multi_class argument to ‘multinomial’. Aside from this, Softmax is performed the exact same way as Logistic Regression. So, similarly to Logistic Regression, we split the training data into training and validation sets, trained the model, and validated its performance. On the validation data, Softmax achieved a hamming loss of 0.08 and an accuracy of 92%. After this, the trained model was tested on our test data. However, like with Logistic Regression, performance suffered due to the unscaled year values; testing performance yielded a hamming loss of 0.69 and an accuracy of 31%. So we just needed to apply scaling to the year values. Simply put, this just meant treating the year 1980 as year 1, and each subsequent year increases from there. This brought testing performance back in line with what we expected. Our final test performance yielded a hamming loss of 0.12 and accuracy of 88%.
Decision Trees and Random Forrests
Next, decision trees and random forrests were implimented. In both cases, the trees were fit with both gini and entropy as the criterion methods. For the decision trees methods, we ran numerical tests on finding the best ccp_alpha value and max depth value to fit various trees. The parameter ccp_alpha finds the weakest nodes and prunes those nodes first versus just pruning any node beyond the maximum depth set with the other parameter. These paramters were optimized under both gini and entropy criterion methods. Below are the results from all of the decision trees. From the results, the highest accuracy was given by the optimal max depth tree using entropy. This tree also had the best F1 score and precision and was on the higher end of recall scores. | Tree Type | Accuracy | F1 Score | Precision | Recall | | ————- | ————- | ————- | ————- |————- | | Basic (Gini) | 0.8627 | 0.64 | 0.72 | 0.58 | | Basic (Entropy) | 0.9745 | 0.92 | 0.89 | 0.95 | | Optimal ccp_alpha (Gini) | 0.8588 | 0.92 | 0.88 | 0.96 | | Optimal ccp_alpha (Entropy) | 0.8510 | 0.92 | 0.88 | 0.96 | | Optimal Max Depth (Gini) | 0.0.8631 | 0.91 | 0.86 | 0.96 | | Optimal Max Depth (Entropy) | 0.9137 | 0.95 | 0.94 | 0.95 |

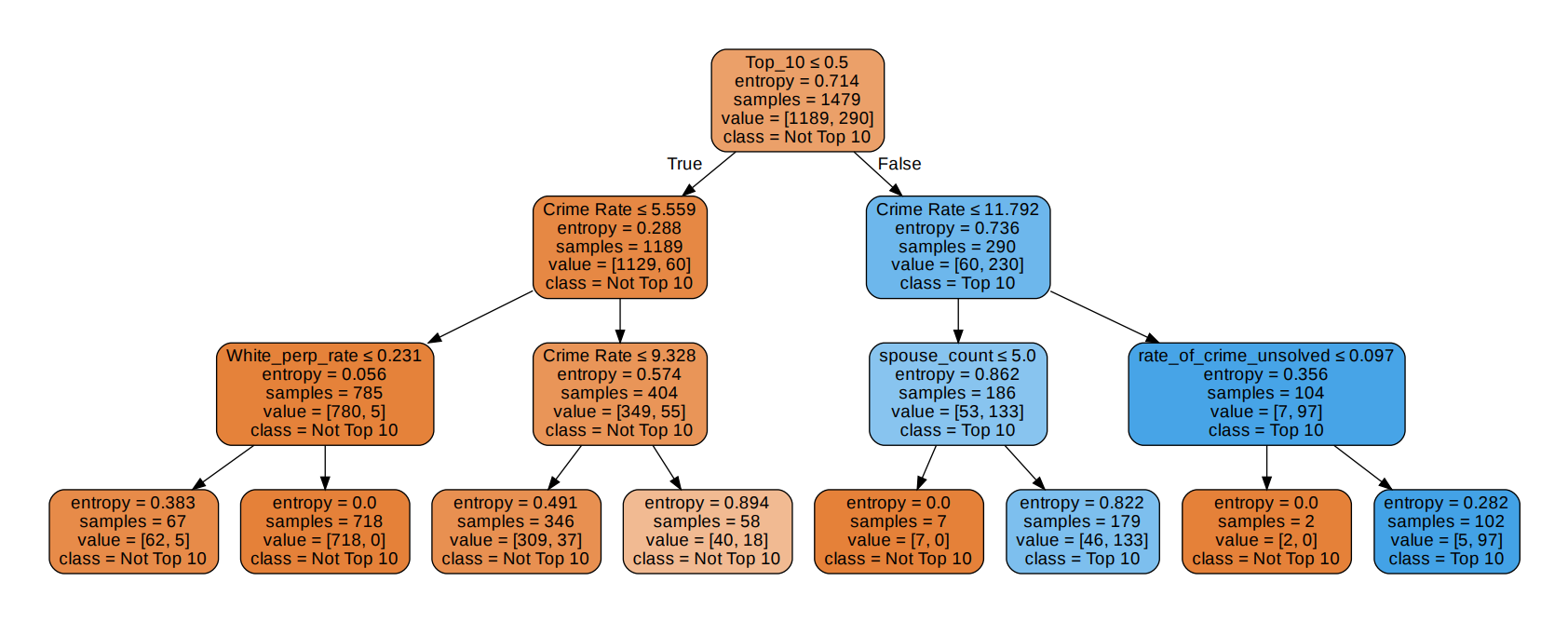

As seen in the tree image below for the best decision tree, the max depth for this tree was only 3 and the top two most important coumns for predicting the next year were if the state was in the top 10 that year and that years cime rate. It is also interesting to discuss the spouse_count column. This column shows the count of spousal murders for that year and the more that a state has in a year, the more likely it will be in the top 10 states the next year. The other column of interest is the solved rate, which shows that with the more unsolved cases, the more likely that the state will be in the top 10 the next year. It can be hypothesized that states with high domestic assault rates are going to experience higher homicide rates and its understandable that having unsolved crimes will only let those murders continue and allow more to feel safe from being caught.
For forests, we fit two kinds with just a basic forest and ones optimizing the number of estimators. The basic forest with the entropy was the best result with the highest accuracy, F1 score and recall values. It is interesting that even optimizing the number of estimators used, we still did not get a great result from decision trees.
| Forrest Type | Accuracy | F1 Score | Precision | Recall |
|---|---|---|---|---|
| Basic (Gini) | 0.8706 | 0.92 | 0.88 | 0.98 |
| Basic (Entropy) | 0.8745 | 0.93 | 0.88 | 0.97 |
| Optimal Estimators (Gini) | 0.8588 | 0.92 | 0.87 | 0.98 |
| Optimal Estimators (Entropy) | 0.8627 | 0.92 | 0.87 | 0.98 |

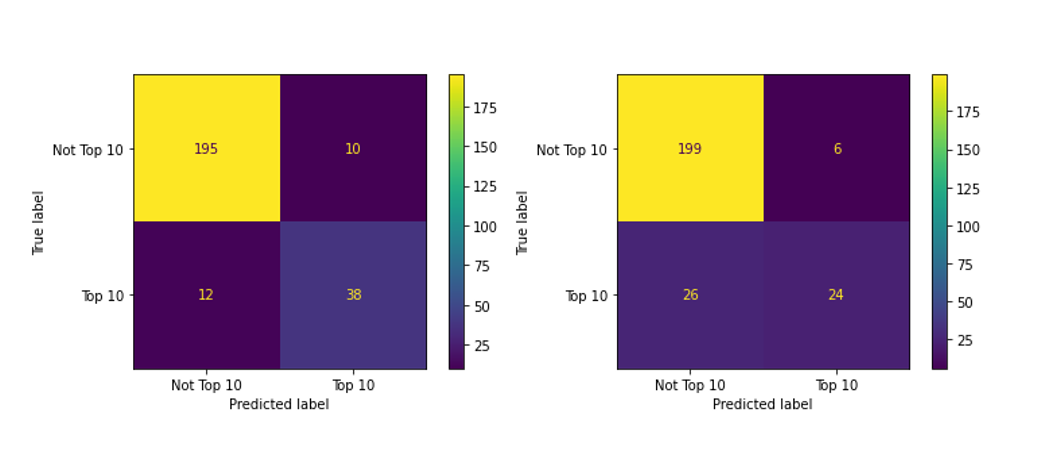

Overall, decision trees and random forests were midly succesfull methods with a maximum accuracy of 0.93. It is iteresting that the forests did not do much better than the decision trees. Below are the confusion matrices for the best results, with the tree’s confusion matrix on the left and the forests on the right. The random forest had more false negatives, whereas the decision tree had more true negative predictions. OVerall each method was quite accurate in the true positive and had very few fasle postives. One explination for the high false negative rates might be due to the uneven data distributions and that there can only be 10 states in that category a year which the algorithm does not know.
Ensemble Predictions

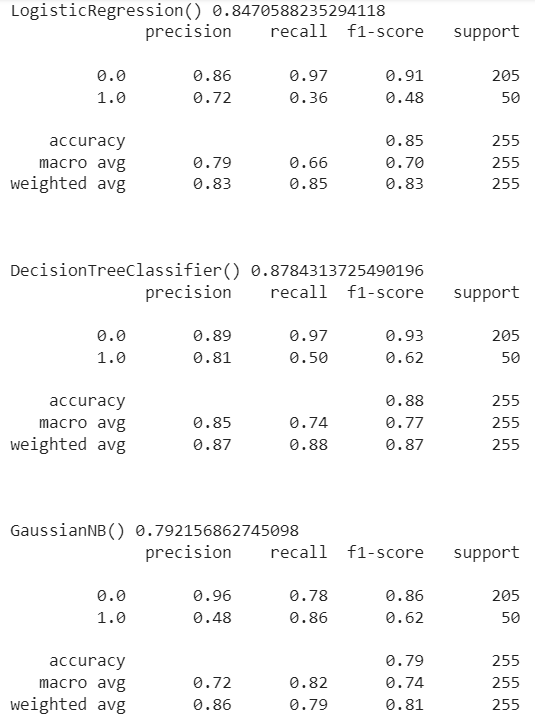

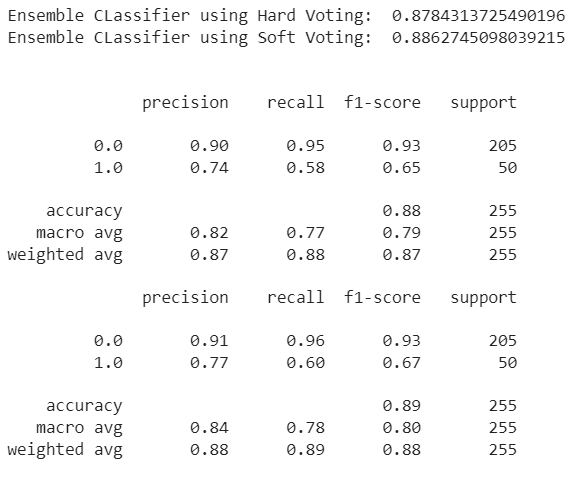

Ensemble learning was implemented on the results derived from above Regression and Classification techniques. We used Hard voting and Soft Voting, where the maximum values out of all the results was considered in hard voting and the average of all values was considered in Soft voting. Below results present the implementation part for Boosting technique on the regression models. As from the previous results of regression techniques, we got to know Gaussian Naïve Bayes performed the worst out of all the algorithm. Boosting technique is applied on weak learners. After applying boosting algorithm, the accuracy of naïve bayes increased considerably. We also implemented Ensemble Learning on regression models. We took Linear regression model and implemented Bagging method, where we divided the set to various subset and applied linear regression on every model and took the average of the output.
| Algorithm | Accuracy (Before Boosting) | Accuracy (After Boosting) |
|---|---|---|
| Gaussian Naive Bayes | 79.21 | 80.0 |
| Algorithm | Accuracy (Before Bagging) | Accuracy (After Bagging) |
|---|---|---|
| Linear Regression | 34.39 | 48.51 |
Conclusion
The table below details the best results for all of the methods described above. Out of all of the regression techniques, linear regression with lasso had the best result with a Root Mean Squared Error (RMSE) of 1.66. With this method, we were only 1.66% away from the true crime rate on average, which is quite close. For classification methods, decision trees had the best accuracy of 91% after being fit with the optimal max depth parameter. For both classification and regression, it is suprising to see that the ensemble methods were no better than the best single method result. This is an indicator that either the methods were not strong enough at prediction or were overfitting to the training data.
| Method | Problem | Result Value |
|---|---|---|
| Linear Regression (Lasso) | Regression | 1.66 RMSE |
| ANN | Regression | 2.047 RMSE |
| Time Series | Regression | 2.611 RMSE |
| Logistic Regression | Classification | 88% |
| KNN | Classification | 83% |
| SVM | Classification | 89% |
| Sofmax | Classification | 88% |
| Decision Trees | Classification | 91% |
| Random Forrests | Classification | 87% |
| Regression | Ensemble | 1.99 RMSE |
| Classification | Ensemble | 89% |
Overall, this problem was difficult due to the data itself. As discussed earlier, the years had to be scaled to help improve overall accuracy of the model. The data was overall skewed. Since any unknown value was set to 0, the means and mins of any numeric column were drastically skewed due to the lack of correct information in the dataset. If better data cleaning was applied to remove and replace the 0 values with the mean or another fill value, this might have increased model performance. In the classification predictions, problems arose from the uneven distribution of classes. Since only 10 states could be in the top 10 each year, that left 40 other states to be in the other category. With the presence of more data, this issue might have been avoided with bootstrapping the dataset. Another possible remedy to this issue could include building more complex models that understand and encoprerate the idea that only 10 states are choosen a year for the Top 10 class.
Future work on this project includes creating a better dataset, investigating other attributes, and building more complex models. As discussed in the previous paragraph, the general makeup of the data caused issues when fitting the model. With better data cleaning and more information about the homicides, the skewness in the data could possibly decrease drastically thus increasing predictability. We also had limited data, with only 1,650 total rows. While more data past 2014 would help with creating a better dataset, any data before 1980 might cause issues due to the drastic differences in crime solving skills as technology has developed.The data didn’t include any general information about the states, such as non-crime related statistics. Learning more about each state could help determine what other features impact homicide rates, such as domestic abuse might lead to more spousal murders, an important column as seen in the decision tree section. Lastly, other model types could be fit to more complex models. High complexity models could incorperate ideas such as only 10 states in the the Top 10 class per year or a state by state model. These models will most likely require more data as well.
